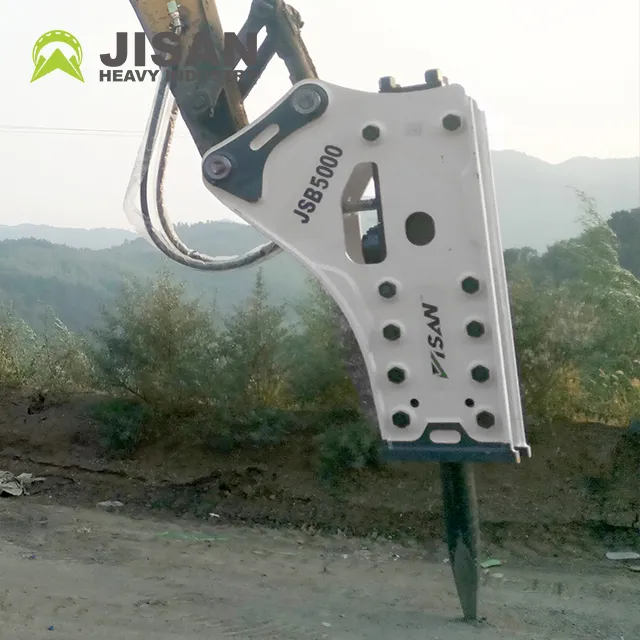

Hydraulic jack hammer demolition breaker with chisel 140mm Hydraulic rock breaker
Hydraulic hammer breaker
Hydraulic breaker 19-26tons
Side type hydraulic hammer breaker Specifications
1. original manufacture
2. durable
3. suprior quality
4. competitive price
5. versatility
Operating pressure:160-180kg/cm2
Required oil flow: 130-170L/min
Impact frequency:400-600Bpm
Fit for 19-26tons of excavator for all of brands, such as Doosan, Hyundai, Hitachi, Volvo, Kobelco, Kato, Sumitomo, Sany, Lovol etc. Package and Shipment 1. Polywood case
2. Two chisels, a netrogen device with a netrogen bottle, a gauge, all hoses and a maintenance tool box with all necessary tools.
3. Loading from any port of China. Our services 1. High qualified engineer and designer
2. High standard QC system
3. Professional processor Products Photos | Item / Model | UNIT | JSB1600S | JSB1900S | JSB2800S | JSB3500S | JSB4500S |
| Suitable Excavator | Ton | 19-26 | 19-26 | 27-38 | 28-40 | 40-65 |
| Chisel Diameter | Mm | 135 | 140 | 150 | 155 | 165 |
| Impact Rate | Bpm | 400-700 | 400-600 | 350-500 | 250-400 | 250-350 |
| Total Weight | Kg | 1679 | 1898 | 2455 | 2650 | 3753 |
| Overall Length | Mm | 2695 | 2810 | 2895 | 3152 | 3310 |
| Operating Pressure | Kg/cm2 | 160-180 | 160-180 | 160-180 | 160-180 | 160-180 |
| Required Oil Flow | L/min | 120-160 | 130-170 | 150-190 | 170-220 | 200-300 |
| Hose Diameter | Inch | 1 | 1 | 1 | 1.25 | 1.25 |
| Item / Model | Unit | JSB200S | JSB400S | JSB600S | JSB800S | JSB900S |
| Suitable Excavator | Ton | 1.5-3.0 | 3.0-5.5 | 4.0-7.0 | 7.0-14 | 11-16 |
| Chisel Diameter | Mm | 45 | 68/70 | 75 | 85 | 100 |
| Impact Rate | Bpm | 700-1200 | 500-900 | 500-800 | 400-700 | 400-700 |
| Total Weight | Kg | 90 | 254 | 264 | 486 | 853 |
| Overall Length | Mm | 1270 | 1347 | 1528 | 1920 | 2260 |
| Operating Pressure | Kg/cm2 | 80-100 | 110-140 | 110-160 | 120-170 | 150-170 |
| Required Oil Flow | L/min | 15-25 | 25-45 | 30-45 | 45-85 | 80-120 |
| Hosepipe Diameter | Inch | 1/2 | 1/2 | 1/2 | 3/4 | 3/4 |
Certification Accessories
Hydraulic Breaker Standard Accessories as follows:
1) Chisel × 2 pcs
2) Hydraulic oil Hose × 2 pcs
3) General Tool with Tool Box × 1 set
4) Manual Book in English × 1 pc
5) Nitrogen Gas Charging Kit with Hose & Gas Cylinder × 1 set
Our Services
1. 14 months warranty after delivery
2. Enough stock for wear parts
3. Competitive maintenance cost
4. High efficiency after-service respone
