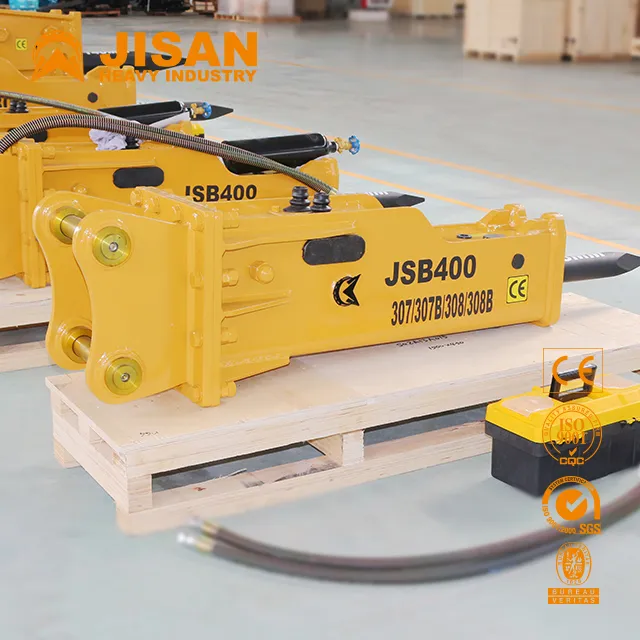

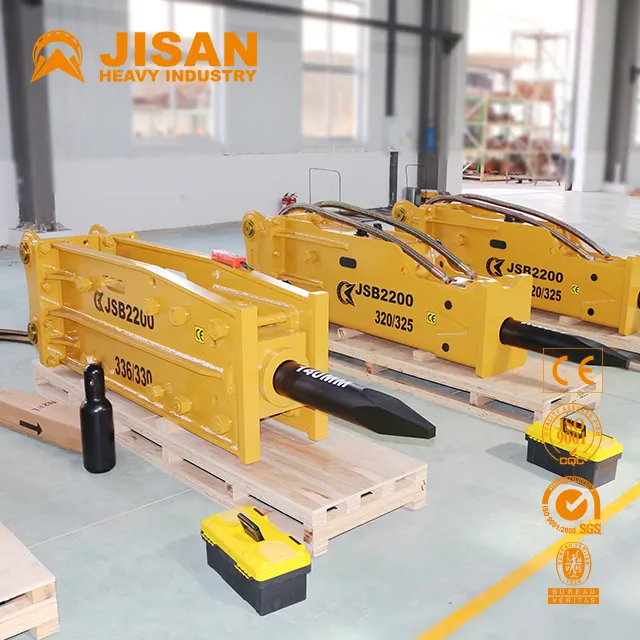

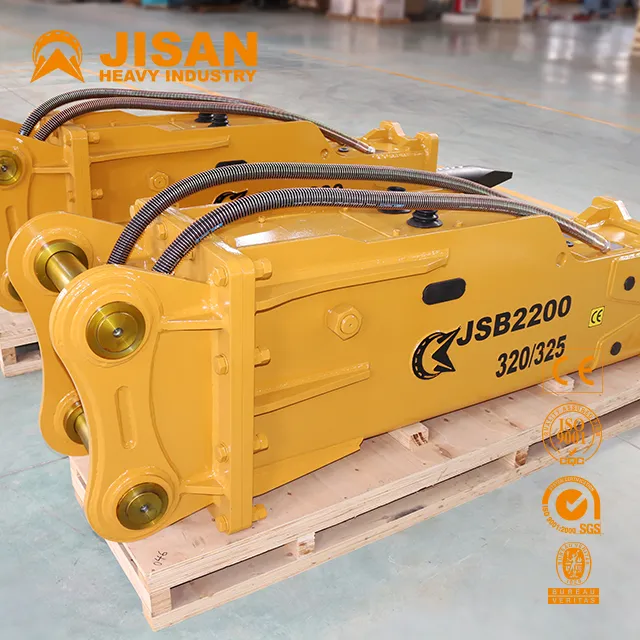

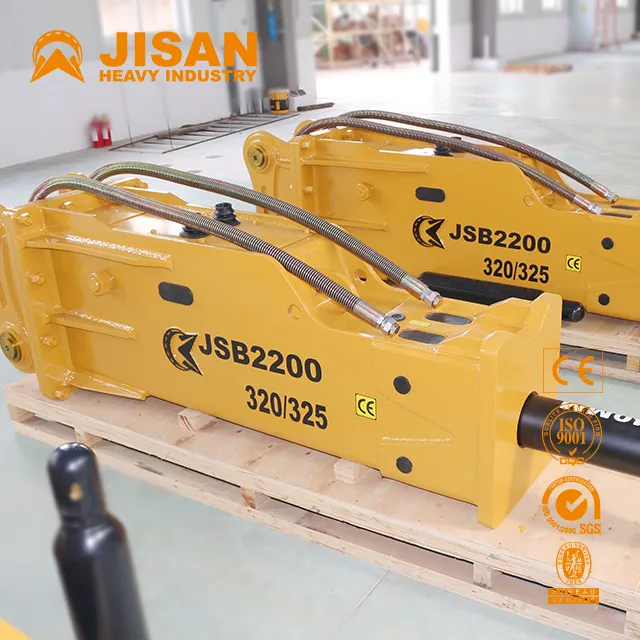

Excavator Rock Breaker for 30 Tons Excavator
Product Features 1. Through Bolt----The front head, the cylinder and the back head of the main body are tightly fixed with four through bolts.
2. Back Head-----The gas charging valve is built in and the inside is charged with N2 gas.
3. Valve ------The cylindrical control valve is built in the valve housing and controls piston reciprocation.
4. Piston-----Kinetic energy of the piston is converted into hammering energy after hitting the chisel.
Advantages 1. Suitable with a wide range of excavators
2. Leading heat treatment technology. Heat resistance and abrasion resistance are enhanced.
3. The device can adjust the flow from excavator and power source, so it can adjust the impact force and beat frequency according to different working situation.
4. Longer use, easy maintenance
5. Strong " hydraulic + nitrogen " impact system
6. Korean equipments and technology used to guarantee the quality
Parameters | Model | Unit | JSB3500 | JSB4500 | JSB5000 | JSB5500 | JSB6500 |
| Weight | Kg | 3100 | 3950 | 4200 | 4900 | 7100 |
| Length | mm | 3254 | 3450 | 3709 | 3800 | 4430 |
| Pressure | Kg/m² | 160-180 | 160-180 | 160-180 | 160-180 | 190-210 |
| Flow | L/Min | 180-240 | 200-260 | 210-290 | 250-310 | 290-370 |
| Rate | Bpm | 300-450 | 250-400 | 200-350 | 250-320 | 200-400 |
| Hose | Inch | 1.25 | 1.25 | 1.25 | 1.25 | 1.25 |
| Chisel | mm | 155 | 165 | 175 | 180 | 210 |
| Suit | Ton | 28-45 | 30-45 | 40-55 | 44-70 | 65-100 |
Product Inspection 1. Every Product will pass through ring upon ring of quality inspection before delivery to our customer.
2. We will do impact test for every product before delivery.
Application JISAN breakers can be widely used to breaking rock, paving road, building demolition, mining, dismantling engineering and special engineering etc.
Our hydraulic hammers fit for various kinds of excavators and skid loader varying from HITACHI, KATO, DOOSAN, DAEWOO, JCB, OKB, NPK, MKB, LIUGONG, HYUNDAI, SUMITOMO, KOBELCO, YANMAR, KUBOTA, IHISCE, TAKEUCHI etc.
Packaging and shipping
1. Inner is stretch film, outside is export wooden case, to make sure the safety of goods
2. The standard free spare parts: Two PCS of Chisel, two PCS of oil tube, one PC of Nitrogen Cylinder, a set of repair tools with tool box, a Nitrogen pressure gauge and a pair of gloves.
3. Delivery time: Usually 5-7days (1-5sets) after down payment.
Our Services
1.7Days *24Hours phone and email service
2. Your inquiry will be replied in 24 hours
3. Well-trained and qualified staff to answer all your questions
4. OEM Service available
5. Warranty: 14 months warranty for hydraulic breaker, beyond the warranty period, all spare parts offered to you with our cost price (not including freight).
Company Introduction
JISAN HEAVY INDUSTRY Ltd. Is one of the largest and most professional hydraulic breaker manufacturers with ten years experience, specialized in R&D and manufacture of JISAN Series Hydraulic Breaker.
Our products have been exported to many countries in the world including India, Saudi Arabia, Iran, South America, Australia, New Zealand, Southeast Asia, USA, Europe, and South Africa etc.
With advanced imported CNC Center and strict quality control management, our products have been approved by ISO, CE authority.
Hydraulic breakers produced by our company mainly include three types: Top Type (Open type), Silenced-box Type and Side Type.
Our hydraulic hammers fit for various kinds of excavators and skid loader varying from HITACHI, KATO, DOOSAN, DAEWOO, JCB, OKB, NPK, MKB, LIUGONG, HYUNDAI, SUMITOMO, KOBELCO, YANMAR, KUBOTA, IHISCE, TAKEUCHI etc.
